Multi-story Steel Structure Wheat Flour Milling Plant/Machine

Wheat Flour Milling Machine Description

To provide the best service to society and produce high quality flour to satisfied with the Wheat processing plant, we are allowing the principle of the client consummate, our engineers have developed the Wheat Flour Milling Machine such as pneumatic pressure mill, square plansifter, purifier and new type of self- balance vibrating separator, horizontal wheat scourer,plane rotating separator, grading and gravity destoner, magnetic separator and so on, which are used to found large scale new flour factory and rebuild flour factory.

our Wheat Flour Milling Machine has advanced technology,combination perfectly, highly capacity, high extracting rate, low power consumption, convenient operation and maintenance, they are very suitablefor medium or large scale flour processing machines, where all kinds of grade wheat flour or special wheat flour can be produced.


VIEW MORE: Do you Know Wheat Flour Machine?



Applications

Take Care Of Every Grain


Wheat is one of the most important grains, with an annual global production of about 740 million tons. To produce high-quality flour without wasting food, understanding the milling process, not just the milling machine, is key.

Good milling is all about the process - how to reliably separate impurities from the grain and then separate out the different parts that make up the grain. This helps to increase the yield and quality of the product.

With our Wheat Milling Machine you can have high quality wheat flour with consistent quality.



Applications of Wheat Flour Milling Machine

The series Wheat Flour Milling Machine contains square plansifter, new pneumatic roller mill and other flour milling equipment. With the novel design, advanced equipment and scientific production flow, this flour milling plant is commonly used to manufacture tailored flour and graded flour. In addition, co-production is also allowed, and the available model includes 100TPD, 120TPD, 140TPD, 160TPD, 200TPD, 220TPD, 250TPD and 300TPD.


The complete set of multi-story steel structure flour milling plant is an innovation by Pingle engineers and technicians, which is the first in China,  can fully meet the production needs with higher economic benefits. Pingle plant and equipment sold as a whole is an important characteristic of this series of products.This design method relieves customers from the pressure of plant construction, saves customers time and capital investment to the greatest extent, is the customer really realize the investment less effective quick ideal investment way.


Pingle's large scale flour mill machines are sold well in many countries such as Zamibia, India, Uganda, Kenya, Nigeria. Come and contact us to start your flour mill project!


Multi-story Steel Structure Wheat Flour Milling Plant/Machine

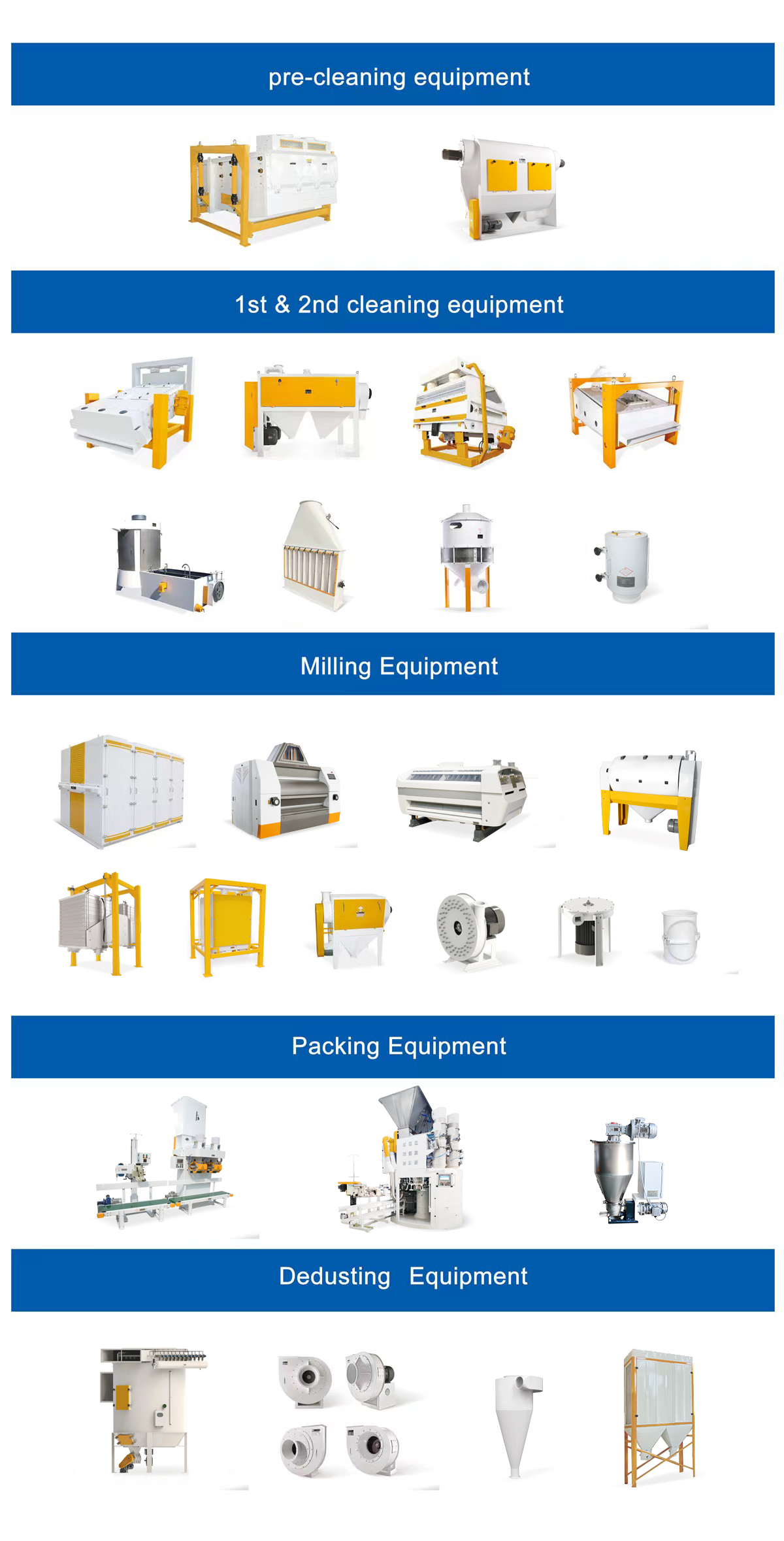

VIEW DETAIL: Main Plant Equipment

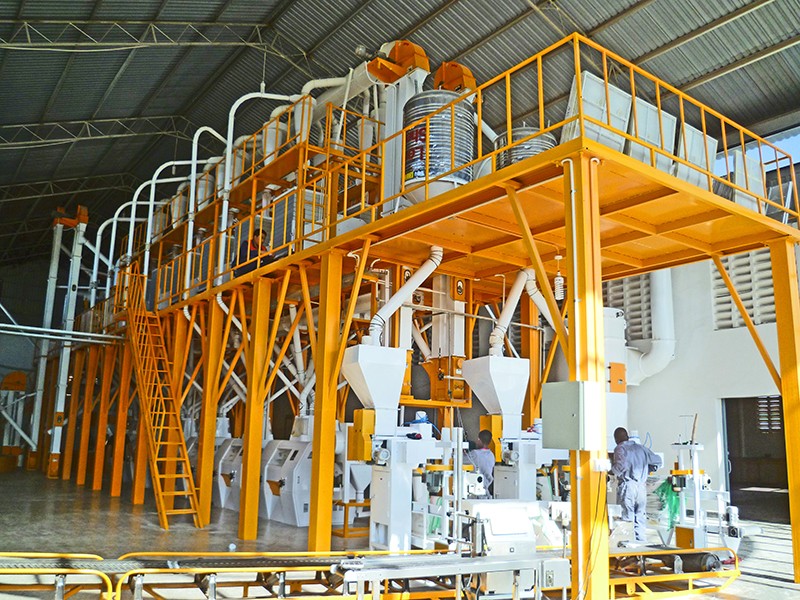

PINGLE Steel Structure Wheat Flour Milling Plant/Machine

Ethiopia 220TPD Wheat Milling Turnkey Project

Ethiopia 140TPD Wheat Milling Plant.

Tajikistan 600TPD Wheat Milling Plant

Uganda 160TPD Wheat Milling Plant

Cameroon 200TPD Wheat Milling Turnkey Project

Russia 180TPD Wheat Milling Turnkey Project

China 350TPD Wheat Milling Plant

China 1400TPD Wheat Milling Plant



Features

The process of Wheat Flour milling (from wheat to milled into wheat flour) usually consist of the following:

1. wheat storage (silos, or warehouse)

2. cleaning system (sifter, destoner, separator, magnet, scourer, etc)

3. dampening (dampener, conditioning silos, etc)

4. milling system (roller mill, plansifter, purifier, impact detacher, etc.)

5. Flour pressure and blending system (if need)

6. flour packing and stacking


VIEW MORE: Maize/Wheat Flour Milling Process


PARAMETER


ModelPower (kW)Power consumption per ton flour(kw/h)Capacity(ton wheat of 24hrs)Dimension(LxWxHm)
120TPD47070-7412040x7.5x19120TPD wheat millis
140TPD56068-7214041x7.5x19140tpd wheat milling machine
160TPD65068-7216047x7.5x19160tpd wheat milling machine
200TPD74065-7120049x7.5x19200tpd wheat milling machine
250TPD96065-7125052x12x29250tpd wheat milling machine
300TPD117065-7130062x12x29300tpd wheat milling machine
400TPD167565-7040072x12x29400tpd wheat milling machine
500TPD195065-7050087x12x30500tpd wheat milling machine



Features of Wheat Flour Milling Machine

1. The building cost takes up a sharply lowered proportion of the total investment, and this design helps investors out from heavy building tasks. Meanwhile, the steel structure lightens the building's weight and cuts down the investment required for ground treatment as well as infrastructure.

2. Our product combines factory building and production equipment. The steel-structure building is rapidly constructed, and the machines are installed conveniently. These two steps are conducted at the same time. So, both time and money are saved, making it possible to gain economic returns in a short time.

3. The building is reasonably designed, and the interior part makes use of section steel while the outer wall adopts color steel plate to provide a tidy and elegant appearance. On the other hand, the original wheat and cleaned wheat are stored separately in rectangle-shaped steel bins whose exterior surfaces can be covered with heat preservation and insulation layers.

4. Our multi-story steel structure flour milling plant allows simple disassembly and transportation. So, it can be moved to another place as a whole to further bring economic benefit.

The Processing of Wheat Flour Milling Machine


Flow Sheet
Multi-story Steel Structure Wheat Flour Milling Plant/Machine
Multi-story Steel Structure Wheat Flour Milling Plant/Machine
Multi-story Steel Structure Wheat Flour Milling Plant/Machine
